It is easy to control FabFilter Simplon's parameters with the large round knobs. They
will light up when you move the mouse cursor around to indicate that you can adjust them. The
moment you move the mouse cursor over a knob, a parameter value display will pop up, which
shows the name and the current value of the parameter.
All knobs support four ways of control:
- Vertical mode

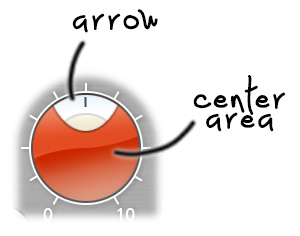

Click on the center area of a knob and drag up or down to rotate it. The knob reacts to the
speed with which you are dragging, so if you move the mouse slowly, you make precise
- Rotate mode
Grab the arrow of the knob and drag it around. By moving the mouse cursor further away from the
knob while dragging it, you can make precise adjustments.
- Mouse wheel mode
Perhaps the easiest way to make adjustments is by using the mouse wheel when you hover over a
knob. This mode works for all the knobs and possible panning rings. (On Windows, you might need
to click in the plug-in interface first to make sure it is the active window.)
- Text entry mode
Double-click a knob to enter an exact value using the keyboard.
- To reset a knob to its default position, hold down the Ctrl key (Windows) or
Command key (macOS) and click the knob once. Note: In Pro Tools, Simplon uses the
default Pro Tools keyboard shortcut for reset: Alt+click.
- To fine-tune a value when using vertical drag mode or the mouse wheel, hold down the
Shift key while dragging or moving the mouse wheel. Note: In Pro Tools, Simplon uses
the default Pro Tools keyboard shortcut for fine tune: Ctrl+drag on Windows or
Command+drag on macOS.
- There are several handy shortcuts in text entry mode. With frequency values, you can
type e.g. '1k' to set the value to 1000 Hz, and also 'A4' for 440 Hz, or even strings like
'C#3+13'. With dB values, you can type e.g. '2x' to get +6 dB (the value that corresponds to
two times louder). With all values, you can also type a percentage (e.g. '50%' will put a knob
exactly in the middle position).
- Sometimes, knobs in our plug-in interfaces are linked: these can be adjusted
simultaneously by holding down the Alt key (Shift key in Pro Tools) while
dragging on one of them. For example, an output level and input level setting of a plug-in
could be adjusted simultaneously (in the opposite direction) this way.
