Decay Rate EQ
Many traditional algorithmic reverbs offer a low/high crossover system to let you change the decay
rate of low frequencies and high frequencies independently. This allows you to make more natural
sounding room models: in real spaces high frequencies often decay quite fast while bass frequencies

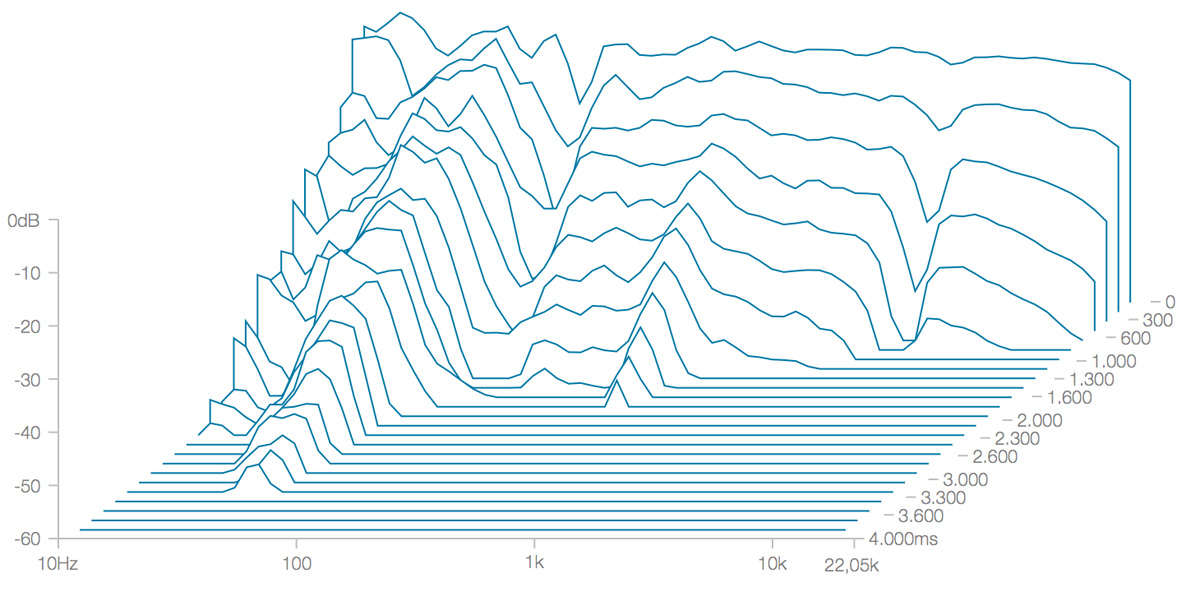

stick around much longer. Shown as a waterfall diagram, visualizing the decay per frequency over time,
it looks like this:
The effect of a crossover system with lows set to 200% and highs set to 50% of the decay time.
FabFilter Pro-R takes this concept to the next level with the introduction of Decay Rate EQ.
With the blue line in the reverb display, you can freely shape the decay rate over the frequency spectrum
using up to six Bell, High/Low Shelf or Notch curves, opening a world of possibilities to design reverbs
of any style and character. For example, you could extend the decay time at some frequencies while shortening
the decay time at other parts of the spectrum:
Using Pro-R's Decay Rate EQ, you can shape the decay time per frequency using Bell, Shelf and Notch curves...
... which opens a world of possibilities when designing your reverb sound.
Creating Decay Rate EQ bands
- To add a new Decay Rate EQ band, simply click on the blue Decay Rate curve and drag it up or down. Dragging at the far left or far right of the display will automatically create a shelf instead of a bell filter. You can create up to 6 different bands.
- To create a notch filter, double-click or Ctrl-click (Command-click on Mac OS X) in the bottom part of the display.
Note that the blue Decay Rate EQ scale at the left side of the display lights up when you are working with Decay Rate EQ bands, to separate them from the Post EQ bands.
- Click the Decay Rate EQ band's dot or the colored area around it to select it.
- Click and drag in the display background to select adjacent bands by
dragging a rectangle around them. Note: this selects both Decay Rate EQ and Post EQ bands.
- Hold down Ctrl (Command on Mac OS X) and click another dot to select multiple bands. Hold down Shift and click a dot to select a consecutive range of bands.
- Deselect all bands by clicking anywhere on on the display background.
Adjusting and editing bands
Once you have one or more bands selected, the display highlights the shapes of the selected
bands. You can now adjust them all at the same time by dragging.
- Click and drag a selected dot to adjust the frequency and decay rate of all selected bands. If you have multiple Decay Rate EQ bands selected, the rate of
all selected bands will be scaled relative to each other.
- Use the mouse wheel to adjust the Q setting of the selected bands, making
them narrower or wider. This works while dragging or when the mouse pointer is above a curve.
Alternatively, hold down Ctrl (Command on Mac OS X) while dragging vertically
to adjust the Q of all selected bands.
- Hold down Shift while dragging to fine-tune the settings of the
- Hold down Alt while dragging to constrain to horizontal
adjustments (frequency) or vertical adjustments (decay rate or Q, depending on the Ctrl/Command key).
- Hold down Alt and click the dot on an EQ band once to toggle its bypass state (enabling or disabling the band).
- Hold down Ctrl+Alt (Command+Alt on Mac OS X) and click the dot on a Decay Rate EQ
band once to change its shape.
- Double-click a dot to enter values in the parameter value display (using
the Tab key to step through Frequency, Decay Rate and Q) or double-click the values in the
parameter value display directly. Note that you can enter frequencies in various ways, like
"100", "2k", "A4" or "C#2+13".
Using the parameter value display
When you move the mouse near a band in the display, the parameter value display appears that provides access to all band parameters.
- Click the Enable button in the left-top corner to bypass and re-enable the band.
- Click the Shape button in the left-bottom corner to change the shape of the band: Bell, Low Shelf, High Shelf, or Notch.
- Click the X button in the right-top corner to delete the band.
- Double-click any of the values in the display to enter the value directly, using the Tab key to move from one value to the next.
The display is attached to the band near the mouse cursor. If this band is selected, the actions you take in the display are applied to all selected bands. For example, to delete all bands, simply select them all and then click the X button in the parameter value display for one of them.
Next: Post EQ
